Durable Steel Walkway Grating Anti Corrosive Non Slip Flooring

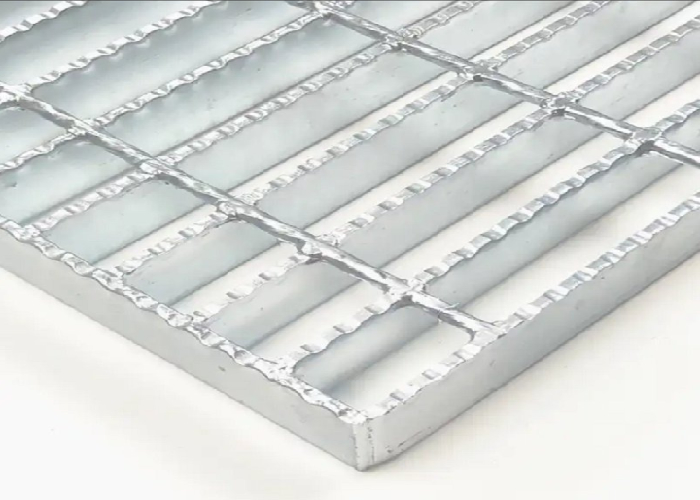

تصویر بزرگ : Durable Steel Walkway Grating Anti Corrosive Non Slip Flooring

جزئیات محصول:

محل منبع:	چین
نام تجاری:	YUANHAI
گواهی:	ISO9001
شماره مدل:	YH-G1

پرداخت:

مقدار حداقل تعداد سفارش:	50 عدد
قیمت:	USD5-26/pc
جزئیات بسته بندی:	1. معمولاً با دو تکه چوب مربع در دو طرف بالا و پایین بسته بندی شده است. 2. بر اساس نیاز مشتری.
زمان تحویل:	5-10 روز
شرایط پرداخت:	T/T ، L/C
قابلیت ارائه:	5000 قطعه در ماه

مخاطب

توضیحات محصول جزئیات

مادی:	فولاد	نوع نوار صلیب:	پیچ خورده
ضخامت نوار تحمل:	2.5-10 میلی متر	ضخامت نوار متقاطع:	6 میلی متر ، 8 میلی متر
راه جوش:	جوش داده شده ، قفل فشار ، قفل شده	نمونه:	رایگان
اندازه:	سفارشی	مدت پرداخت:	T/T ، L/C
درمان سطحی:	گالوانیزه شده	اندازه نوار صلیب:	6 میلی متر
برجسته کردن:	steel walkway grating anti corrosive,non slip steel flooring,durable walkway grating with warranty , non slip steel flooring , durable walkway grating with warranty

Durable Steel Walkway Grating Anti Corrosive Non Slip Flooring

Heavy Duty Steel Walkway Grating Strong Load Bearing Anti Slip for Industrial Platforms

Product Overview

Durable Steel Walkway Grating is designed to provide safe, cost-effective, and reliable flooring solutions in industrial and commercial projects. It features serrated or plain bearing bars joined with cross bars to form a strong grid structure. The serrated surface offers enhanced slip resistance, while hot-dip galvanizing provides superior corrosion resistance. Its lightweight yet durable design makes it easy to handle and install, making it an excellent choice for safety flooring in factories, wastewater treatment plants, warehouses, and municipal infrastructure.

Compared to concrete or solid steel flooring, steel grating reduces installation time, improves ventilation, and allows natural drainage. These advantages make it a long-term solution for both heavy-duty and light-duty applications.

Specifications

Item	Specification
Material	Mild steel, stainless steel, galvanized steel
Bar Type	Plain flat bar, serrated bar
Bar Size	25 * 3 mm - 50 * 5 mm
Bearing Pitch	30 mm, 40 mm
Cross Bar Pitch	50 mm, 100 mm
Surface Finish	Hot-dip galvanized, painted
Panel Size	1 * 3 m, 1 * 6 m, customizable
Surface Type	Smooth or serrated non-slip

Key Features

Slip-resistant surface ensures worker safety in wet or oily areas.
Corrosion protection from hot-dip galvanizing.
Lightweight but strong: easy to transport and install.
Open design allows water, air, and light to pass freely.
Flexible applications across multiple industries.

Advantages

Improves workplace safety and reduces accident risks.
Long lifespan with minimal maintenance requirements.
Reduces installation labor and overall project costs.
Environmentally friendly: recyclable and sustainable.
Customizable dimensions to meet unique project needs.

Applications

Industrial: walkways, mezzanine floors, safety platforms.
Municipal: drainage covers, trench covers, pedestrian bridges.
Commercial: parking lots, staircases, ventilation grilles.
Utilities: wastewater treatment, chemical plants.
Public projects: parks, subways, and stations.

Manufacturing Process

Select raw steel bars according to specifications.
Assemble and weld bearing bars with cross bars.
Apply galvanizing or protective coatings.
Cut and finish panels to customer sizes.
Inspect for quality, durability, and slip resistance.

Packaging & Delivery

Steel walkway gratings are stacked and strapped securely on wooden or steel pallets. Each shipment can be wrapped with waterproof material to prevent rust during transit. Normal delivery time is 10-15 days.

Q: Is serrated grating better than plain?

A: Serrated bars provide extra slip resistance, especially in outdoor or oily areas.

Q: Can gratings be reused?

A: Yes, they are durable and easy to dismantle for relocation.

Q: Do you offer custom coatings?

A: Yes, we can provide epoxy, painted, or galvanized finishes based on client needs.

Why Choose Us?

With over a decade of expertise in metal mesh solutions, we offer competitive pricing, strict quality control, and tailored support. Our global logistics network ensures punctual delivery, and our technical team stands ready to assist with custom designs, material selection, and installation guidance--guaranteeing your project's success.
