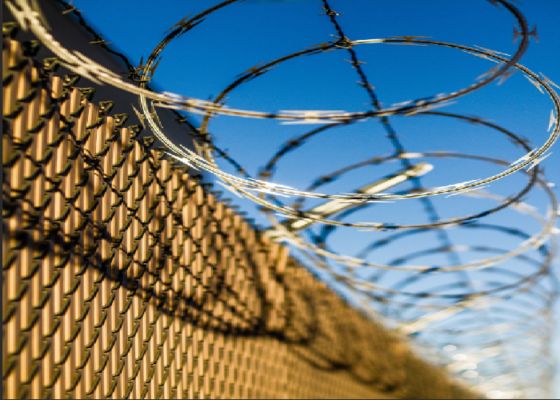

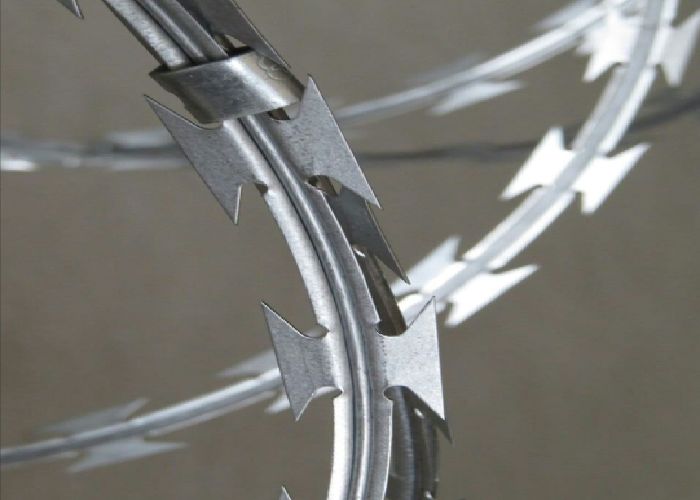

High Tensile Razor Barbed Wire 8cm Spacing 0.5mm Thickness

چین Anping yuanhai wire mesh products Co., Ltd گواهینامه ها
چین Anping yuanhai wire mesh products Co., Ltd گواهینامه ها
با تشکر از مهمان نوازی شما

—— راجر هاپکینز

شرکت خوب با خدمات خوب و کیفیت بالا و شهرت بالا.

—— Mr.mosharaf hossain

دریافت Gabion Mesh ، با تشکر از خدمات پس از فروش خوب شما.

—— تسدیسو سدی

چت IM آنلاین در حال حاضر

High Tensile Razor Barbed Wire 8cm Spacing 0.5mm Thickness

High Tensile Razor Barbed Wire 8cm Spacing 0.5mm Thickness

تصویر بزرگ :  High Tensile Razor Barbed Wire 8cm Spacing 0.5mm Thickness

جزئیات محصول:
محل منبع: استان هبی ، چین
نام تجاری: YUANHAI
گواهی: ISO9001
شماره مدل: YH005
پرداخت:
مقدار حداقل تعداد سفارش: 200 رول
قیمت: US$8~25
جزئیات بسته بندی: در تسمه های پلاستیکی یا فولادی سنگین سیم پیچ
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: L/C ، T/T
قابلیت ارائه: 20000 رول / رول در ماه
توضیحات محصول جزئیات
سبک تیغ تیغ: BTO-22/BTO-11/BTO-30/CBT-60/CBT-65 بیرونی: پولش
شکل سوراخ: مربع فاصله تیغ: 8 سانتی متر
ضخامت خاردار تیغ: 0.5 میلی متر یا به عنوان درخواست رنگ: نقره
نوع سیم: تک/دو استفاده: شمشیربازی ، امنیت ، محافظت
استفاده کردن: شمشیربازی امنیتی مرز درجه کیفیت: صادرات با کیفیت بالا یا معمولی
برجسته کردن:

high tensile razor barbed wire,razor barbed wire 8cm spacing,0.5mm thickness barbed wire

,

razor barbed wire 8cm spacing

,

0.5mm thickness barbed wire

High Tensile Razor Barbed Wire Corrosion Resistant Secure Perimeter Solution
Product Overview

The High Tensile Razor Barbed Wire System is engineered for reliable perimeter security in commercial, industrial, and critical infrastructure sites. Combining a high-tensile core wire with precision stamped razor blades and durable surface treatments, the system delivers an effective psychological and physical deterrent while resisting corrosion, UV exposure and mechanical stress. Available in coils, concertina rolls, and pre-assembled fence toppers, our razor barbed wire is designed for easy installation, long service life and low maintenance in harsh climates.

Typical Specifications
Item Specification
Core Wire Material High tensile galvanized steel / Galvanized plus PVC coated / Stainless options
Core Wire Diameter 2.0 mm - 4.5 mm (customizable)
Blade Material Hardened steel strip (galvanized or stainless)
Blade Length 12 mm - 22 mm
Coil Lengths 10 m / 30 m / 50 m standard or custom
Coil Diameter 300 mm - 900 mm depending on roll type
Coating Hot dip galvanizing ≥ 60 g/m² optional electrogalvanized PVC 0.25-0.5 mm
Tensile Strength ≥ 350 N/mm² (depending on wire grade)
Temperature Range −40 °C to +80 °C typical
Packaging Wooden reel cardboard core shrink wrap export crate
Key Features
  • High tensile core for sustained tension and reduced sagging
  • Precision stamped razor blades for consistent sharpness and effective deterrence
  • Multiple coating options for marine and industrial corrosion resistance
  • Available in straight coils concertina (razor coil) and pre-mounted fence toppers
  • Compact spooling maximizes container load efficiency
Advantages
  • Strong physical barrier that deters intrusions and delays attempts to breach
  • Low maintenance thanks to robust coatings and high quality metallurgy
  • Flexible deployment options for walls fences rooftops and temporary barriers
  • Cost efficient logistics due to space-saving coil design and modular toppers
  • Complies with common international manufacturing standards; material test records (MTR) available
Applications

Perimeter security for factories warehouses prisons military bases airports substations construction sites temporary event fencing and border control installations.

Manufacturing Process
  1. Raw wire drawing to required tensile specification
  2. Blade stamping from cold-rolled steel strip with deburring and edge hardening controls
  3. Blade assembly by cold pressure fitting or twisting onto core wire at specified pitch
  4. Coating process (hot dip galvanize or PVC extrusion) and final heat treatment if required
  5. Winding onto reels or forming concertina coils and final inspection including tensile and coating thickness tests
  6. Export packing and labeling
Installation & Maintenance Tips

Install using approved clips ties or mounting brackets; maintain recommended tension to prevent sagging. For coastal or chemical environments choose thicker galvanizing or PVC coating. Periodic inspections reduce risk of cut strands or corrosion points; replace damaged sections promptly.

Packaging & Delivery

Standard export packaging: banded wooden reels or palletized concertina coils with shrink wrap and anti-corrosion treatment. Typical lead time 15-25 working days depending on order size and coating selection. FOB, CIF, and EXW terms available.

High Tensile Razor Barbed Wire 8cm Spacing 0.5mm Thickness 0 High Tensile Razor Barbed Wire 8cm Spacing 0.5mm Thickness 1
Contact / Call to Action

Provide your required coil type coating preference wire diameter and quantity for a fast quotation and lead time. Technical drawings and installation guidance available on request.
