358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

چین Anping yuanhai wire mesh products Co., Ltd گواهینامه ها
چین Anping yuanhai wire mesh products Co., Ltd گواهینامه ها
با تشکر از مهمان نوازی شما

—— راجر هاپکینز

شرکت خوب با خدمات خوب و کیفیت بالا و شهرت بالا.

—— Mr.mosharaf hossain

دریافت Gabion Mesh ، با تشکر از خدمات پس از فروش خوب شما.

—— تسدیسو سدی

چت IM آنلاین در حال حاضر

358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

تصویر بزرگ :  358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels

جزئیات محصول:
محل منبع: چین
نام تجاری: YUANHAI
گواهی: ISO9001
شماره مدل: YH-ACF
پرداخت:
مقدار حداقل تعداد سفارش: 100 قطعه
قیمت: US$20~80
جزئیات بسته بندی: 1. پوشش حباب دار در پایین پالت 2. قرار دادن فیلم پلاستیکی بین هر دو پانل 3. گوشه های فلزی ثابت در هر
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: T/T ، L/C
قابلیت ارائه: 500 قطعه در ماه
توضیحات محصول جزئیات
نام محصول: 358 حصار امنیتی واژگان کلیدی: حصار ضد برش ضد آب
قدرت جوش خورده: دامنه 540-690 N/m2. ارتفاع تابلو: 1.2m-6m (اندازه پیشنهاد: 2M/2.4m/3m)
سیم افقی: 3.5 میلی متر برنامه: مناطق امنیتی بالا
عرض: 2.5 متر مادی: سیم فولادی گالوانیزه
اتمام: گالوانیزه، روکش پودری، روکش پی وی سی سطح امنیتی: ضد آب و هوا ، ضد بریده
فرآیند: بافندگی و جوشکاری نمونه: به صورت رایگان
برجسته کردن:

358 anti-climb security fencing,galvanized steel security panels,anti-cut 358 fence panels

,

galvanized steel security panels

,

anti-cut 358 fence panels

High Strength 358 Security Fencing Anti-Climb Protection Panels
Product Specifications
Attribute Value
Product Name 358 Security Fencing
Key Features Anti-climb, anti-cut fence
Welded Strength 540–690 N/m²
Panel Height 1.2m-6m (Recommended: 2m/2.4m/3m)
Horizontal Wire 3.5mm
Application High security areas
Width 2.5m
Material Galvanized steel wire
Finishing Galvanized, powder coated, PVC coated
Security Level Anti-Climb, Anti-Cut
Process Weaving and Welding
Sample Available for free
Product Description

The 358 security mesh is the ultimate security fencing system, also known as the wire-wall system. Its design makes it extremely difficult to cut through using conventional wire cutters, offering maximum security and anti-corrosion protection.

With its 4mm wire diameter and rectangular mesh configuration, the panel provides excellent visibility while resisting vandalism. The finger and toe-proof mesh pattern classifies it as an anti-climb system, making it ideal for high-risk areas. This system is extensively used by the Ministry of Defence around high-security sites.

The mesh size is 76.2×12.7mm (center to center), with horizontal wire spacing of 12.7mm and vertical wire spacing of 76.2mm. The fencing offers superior anti-corrosion performance, anti-aging properties, aesthetic appeal, and easy installation.

Detailed Specifications
Specification 2.1m 2.4m 3.0m
Panel height 2134mm 2438mm 2997mm
Panel width 2515mm 2515mm 2515mm
Mesh size 12.7 x 76.2mm 12.7 x 76.2mm 12.7 x 76.2mm
Horizontal wire 4mm 4mm 4mm
Vertical wire 4mm 4mm 4mm
Panel weight 50kg 57kg 70kg
Posts 60 x 60 x 3 mm 60 x 60 x 3 mm 80 x 80 x 3 mm
Post length 2.8m 3.1m 4.0m
Clamp bar 40 x 6 m slotted 40 x 6 m slotted 40 x 6 m slotted
Fixings 8 galv bolt c/w Permacone security nut
No. of fixings 8 9 11
Key Features
  • Anti-climb: The high-density mesh makes it impossible to grasp with hands and feet, providing excellent protection against climbing.
  • Anti-shear: Large wire diameter and dense mesh configuration render conventional wire cutters ineffective.
  • Aesthetic appeal: Flat mesh surface with high visibility and vandalism resistance.
Applications
Prisons
Sport Stadiums
Schools/Hospitals
Commercial Sites
Airports
Power stations
Industrial Estates

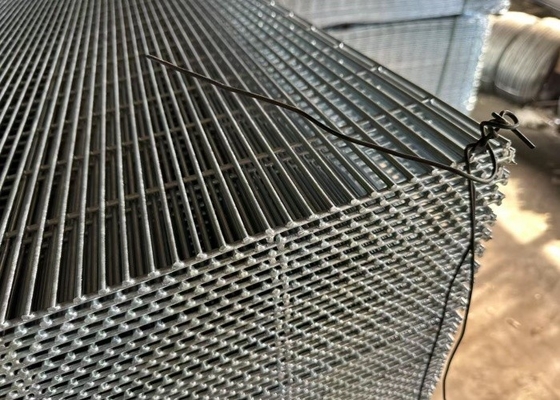

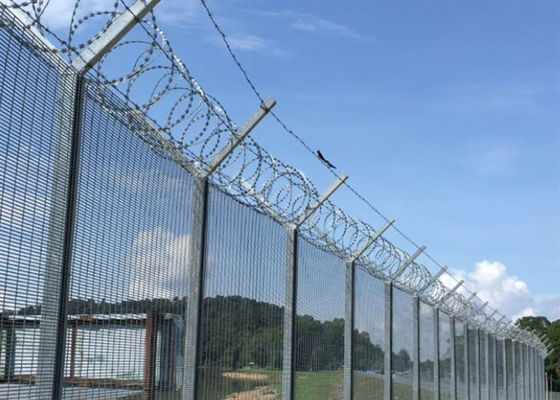

358 Fence Panel Types
358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 0 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 1

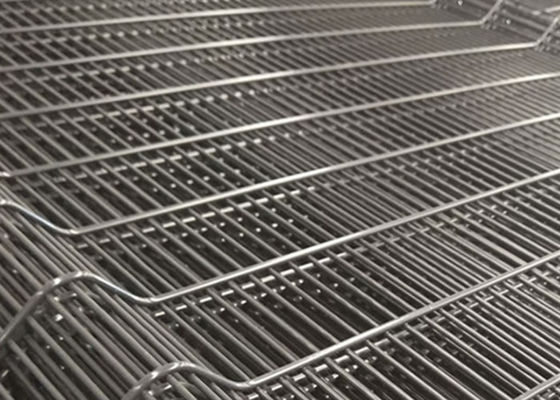

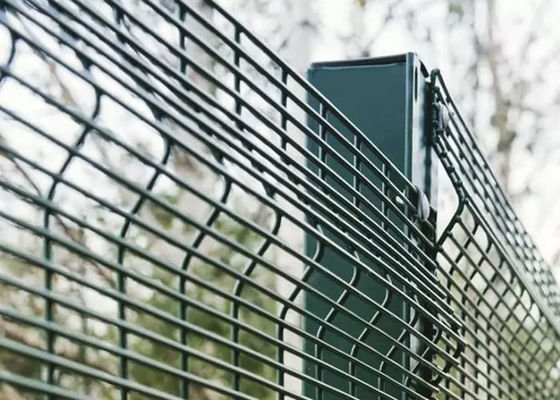

Packaging
358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 2 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 3 358 Security Fencing Anti-Climb Anti-Cut Galvanized Steel Panels 4
